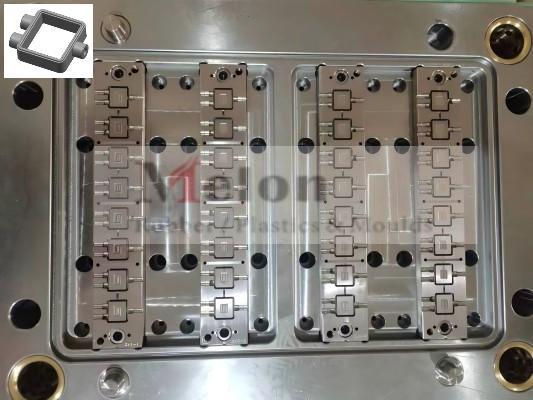

32-Cavity Flame Resistant LSR Mold for Sealing Connectors | UL94-V0 Certified | Fast 50-Day Delivery - Melon



32-Cavity Flame Resistant LSR Mold for Sealing Connectors | UL94-V0 Certified | Fast 50-Day Delivery - Melon

Price:18000USD

Deliver high-performance UL94-V0 sealing connector with 32-cavity LSR injection mold for electrical automotive dust, Wacker3011/50 material,designed for fast cycle times (120s) and ISO 3302-1 M1F tolerances. Ideal for automotive OEMs seeking cost-effective, high-volume production.

[Request Case Study PDF]

  • Product Details

Technical Specifications

Parameter Details
Cavities 32 Large 600MM LSR Mold
Material Wacker3011/50 (50 Shore A) Flame Resistant UL94-V0
Cycle Time 120 seconds (40% faster vs manual)
Mold Steel S136 (HRC 48–52)
Gate Technology Cold Runner with 8 Valve Gates
Demolding Semi-automated demolding
Lead Time 55 days


32-Cavity Flame Resistant LSR Mold for Sealing Connectors | UL94-V0 Certified
Expert cold runner LSR mold supplier for UL94-V0 flame-resistant connectors. 32 cavities, 120s cycle time, robotic demolding. Solve material shrinkage & brittleness issues.

Ideal for automotive electronics and industrial equipment. Get a quote!





Key Challenges & Solutions
Problem 1: Material Shrinkage Variations
- Issue: Dow material's low tensile strength led to tearing, so have to switched to Wacker 3011/50 (material self with black pigment) with 30% higher tensile strength.
- Solution: Redesigned mold core pin for Wacker 3011/50, because of different Material, different mold Shrinkage

Problem 2: Manual Demolding Inefficiency
- Issue: 300s cycle time with labor-intensive handling.
- Solution: Semi-automatic pneumatic fixture reduced cycle time to 120s and defect rate by 60%.

Problem 3: Air Extraction Holes
- Issue: Air burrle on surface/Lack LSR material caused dimensional instability.
- Solution: Drill air extraction holes of the rear mold core.

4.Technical Points
✅ Precision Adaptation: Tolerance is according to ISO3302-1 Class M1 facing such complex Structure
✅ Flame Resistance: UL94-V0 certification ensures safety in high-risk environments.
✅  LSR with Color: Seamless black pigment integration without machine contamination.
✅ Cost Efficiency: 32 cavities + robotic demolding cut per-part cost by 35%.

5.Industry Applications
- Automotive Electronics: EV battery connectors, sensor housings.
- Industrial Equipment: Flame-resistant seals for control panels.
- Consumer Electronics: High-durability USB/HDMI ports.

[Application Case: Flame-Resistant Connector for EV Chargers] , Please Contact Melon LSR Experts for Details DFM

6.Trust Factors & CTA
Certifications: ISO 9001, UL94-V0, REACH.
Testing Video: [Watch Mold Demolding Process ( manual demoulding and Semi-automated demolding)

Start Your Flame-Resistant Connector Project
➤ Request Free Material Sample | ➤ Get a DFM Analysis | ➤ Speak to LSR Experts

Ready to start your molding project? Contact us today! Get a Quote→
